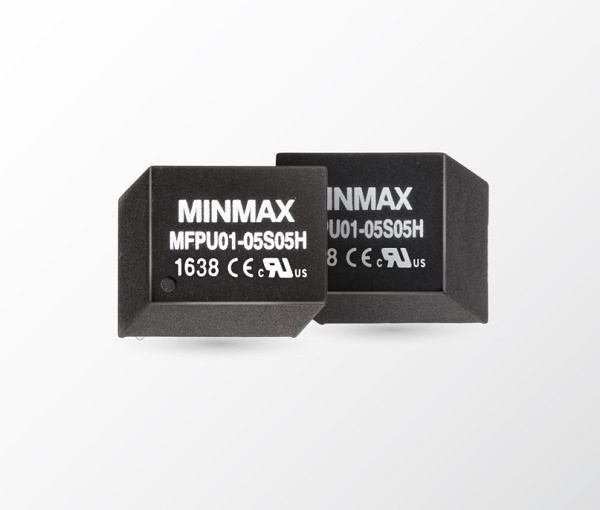

MFPU01H
MFPU01H
・業界標準DIP-8パッケージ
・絶縁耐圧3000VDC
・動作周囲温度-40℃～90℃
| MFPU01H-033S033H | 3.3(2.97-3.63) | 3.3 | 300 | 75 |
| MFPU01H-033S05H | 3.3(2.97-3.63) | 5 | 200 | 79 |
| MFPU01-033S12H | 3.3(2.97-3.63) | 12 | 84 | 80 |
| MFPU01-033S15H | 3.3(2.97-3.63) | 15 | 67 | 81 |
| MFPU01-033D05H | 3.3(2.97-3.63) | ±5 | ±100 | 78 |
| MFPU01-033D12H | 3.3(2.97-3.63) | ±12 | ±42 | 80 |
| MFPU01-033D15H | 3.3(2.97-3.63) | ±15 | ±33 | 81 |
| MFPU01-05S033H | 5(4.5-5.5) | 3.3 | 300 | 77 |
| MFPU01-05S05H | 5(4.5-5.5) | 5 | 200 | 80 |
| MFPU01-05S12H | 5(4.5-5.5) | 12 | 84 | 82 |
| MFPU01-05S15H | 5(4.5-5.5) | 15 | 67 | 83 |
| MFPU01-05D05H | 5(4.5-5.5) | ±5 | ±100 | 80 |
| MFPU01-05D12H | 5(4.5-5.5) | ±12 | ±42 | 83 |
| MFPU01-05D15H | 5(4.5-5.5) | ±15 | ±33 | 83 |
| MFPU01-12S033H | 12(10.8-13.2) | 3.3 | 300 | 77 |
| MFPU01-12S05H | 12(10.8-13.2) | 5 | 200 | 79 |
| MFPU01-12S12H | 12(10.8-13.2) | 12 | 84 | 81 |
| MFPU01-12S15H | 12(10.8-13.2) | 15 | 67 | 82 |
| MFPU01-12D05H | 12(10.8-13.2) | ±5 | ±100 | 80 |
| MFPU01-12D12H | 12(10.8-13.2) | ±12 | ±42 | 82 |
| MFPU01-12D15H | 12(10.8-13.2) | ±15 | ±33 | 82 |
